MP260 Wood-Mizer 4-Sided Planer / Moulder
Compact and versatile 4-sided planer / moulder. The MP260 is an ideal choice for individuals and businesses who need an efficient, versatile and precise machine.
The Wood-Mizer MP260 four-sided planer/moulder is a versatile and space-saving solution for professional woodworking applications. Designed for craftsmen in the building and construction sector, it combines simple operation with reliable performance, allowing all four sides of a workpiece to be planed or moulded in a single pass. The machine is suitable for producing finished components such as flooring, decorative profiles, panels, frames for windows and doors, and furniture elements.

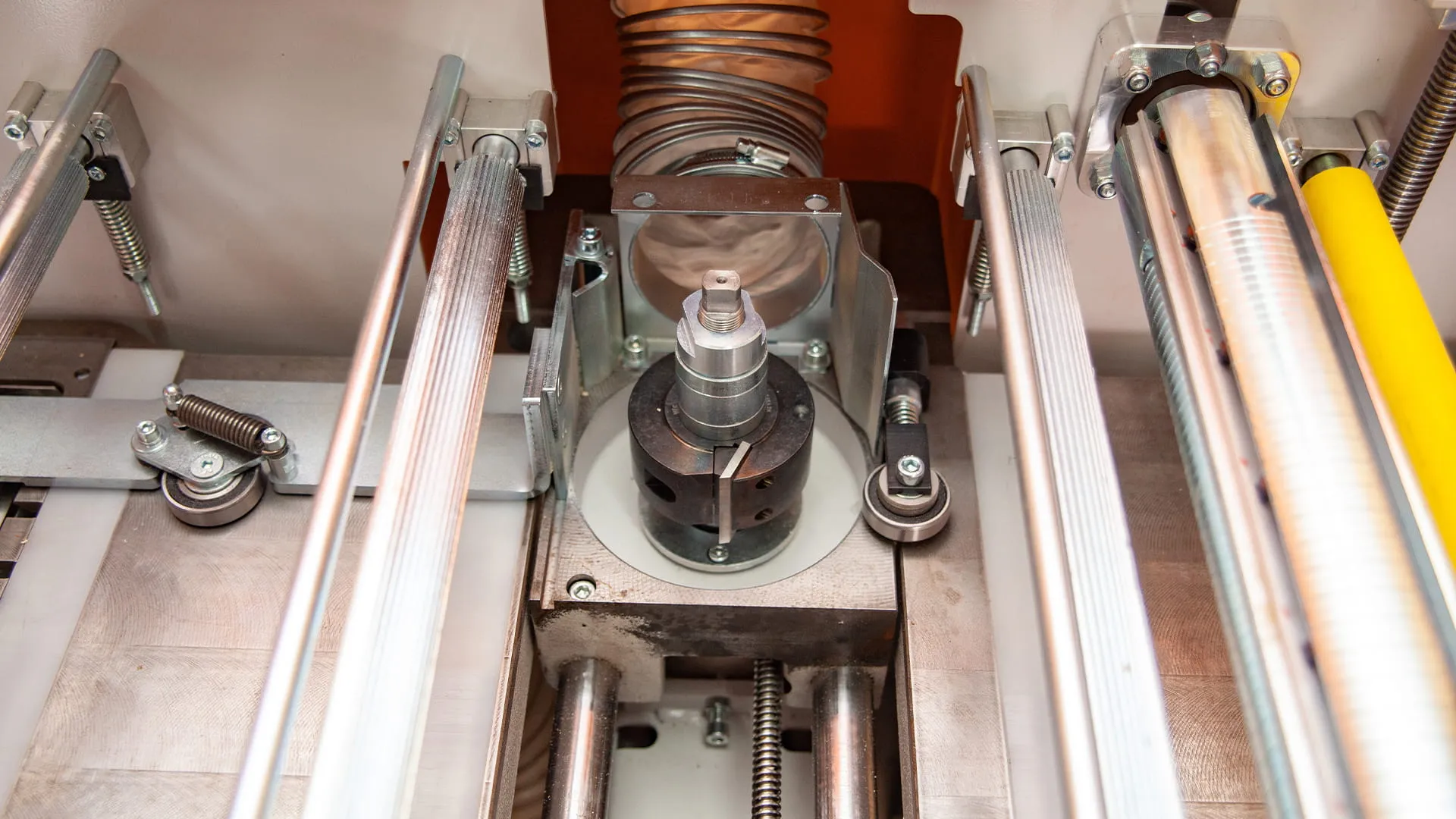

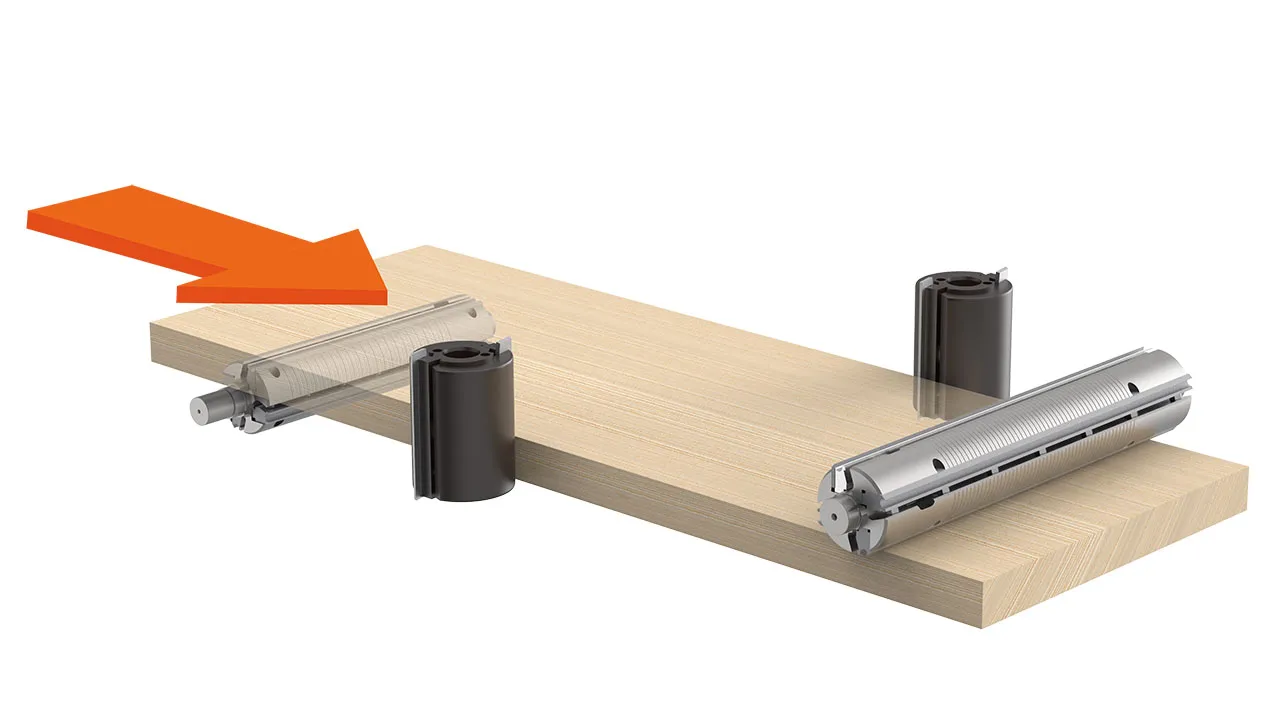

Its cutting system consists of two horizontal cutterheads and two side cutterheads. The top cutterhead has a working width of 410 mm, the bottom cutterhead 300 mm, while each side cutterhead supports profiles up to 100 mm in height. One side cutterhead is fixed, and the other can be adjusted to suit different material dimensions. Standard equipment includes HSS straight knives, with optional profile knives available in multiple shapes and sizes for customized moulding work.

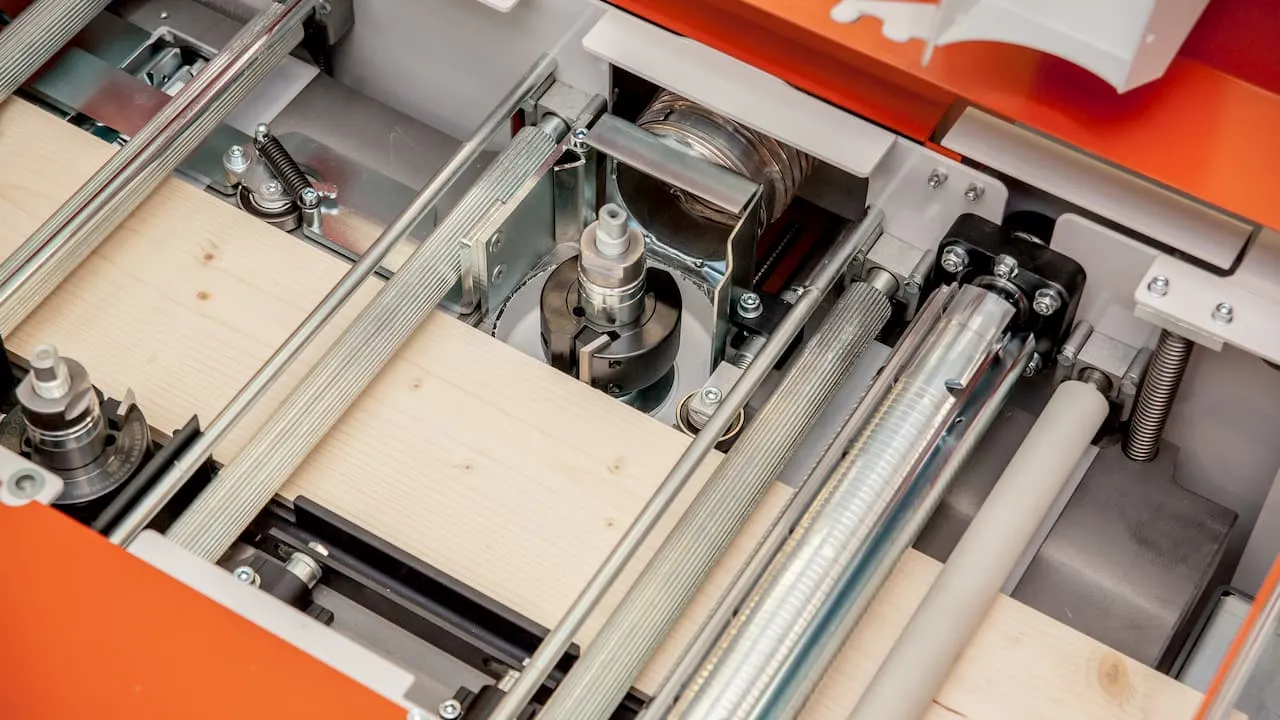

Five feed rollers guide the material evenly through the machine, ensuring stable processing and consistent results. Depending on production requirements, the standard steel rollers can be replaced with hardened steel or polyurethane versions for improved durability or better surface protection.

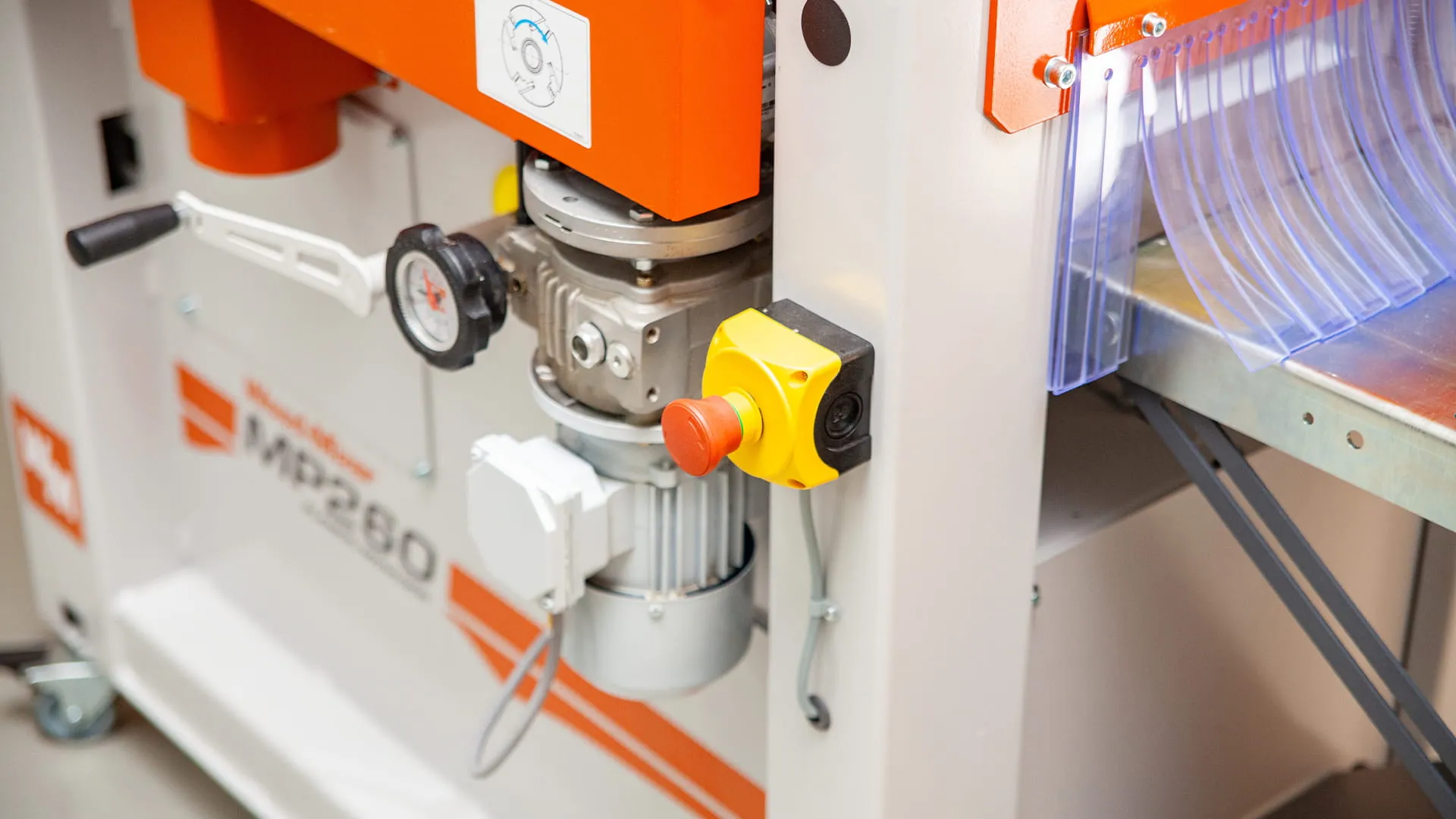

The cast-iron work table is precision-machined on CNC equipment to ensure rigidity and vibration-free operation. An intuitive control panel is positioned close to the operator, and the machine is powered by quiet and efficient motors with a combined output of 12.5 kW.
Efficient dust removal is achieved through four extraction portsโone 125 mm and three 100 mmโstrategically located to capture chips directly at the cutterheads. The MP260 supports material heights up to 100 mm, with optional high side cutterheads required for side profiling at maximum height.
In standard four-sided operation, the maximum working width is 260 mm. This can be extended to 300 mm in two-sided mode by removing the side cutterheads, or to 410 mm for one-sided processing using only the top cutterhead.
Applications
timber construction
medium workshopTimber frame and log-home builders use the MP260 to dimension and true up heavy beams, timbers, and posts to finished sizes while improving surface appearance. The simultaneous four-face processing reduces the labor-intensive hand planing traditionally required for these large components, and enables consistent profiles for structural and aesthetic requirements.
custom millwork
small workshopCustom millwork shops use the MP260 to dimension rough lumber and produce profiled stock for architectural elements such as trim, mouldings, and casing. The four-sided capability allows shops to machine both faces and edges simultaneously, reducing setup time and improving dimensional consistency for components that must fit precisely in finished installations.
furniture production
medium workshopFurniture makers employ the MP260 to thickness and finish all four sides of table legs, rails, stiles, and other structural members in a single operation. This improves surface quality, reduces hand planing, and ensures consistent dimensioning across repeated parts, which is critical for assembly-line style production where tolerance stack-up can cause fit problems.
flooring production
medium workshopSmall to medium flooring manufacturers use the MP260 to thickness hardwood and softwood flooring stock and apply edge bevel profiles in a single pass. This capability improves production efficiency over manual or sequential machining methods and produces the uniform, finished appearance required for residential and commercial flooring installations.
