CX110

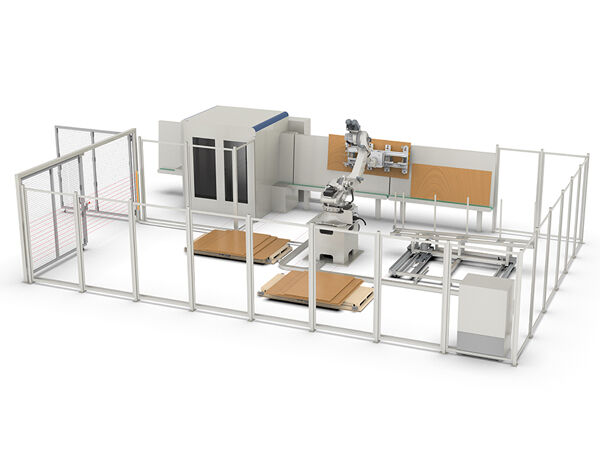

CNC drilling centre with a wide range of routing and drilling tools designed to meet any requirement in woodworking and materials with similar physical properties. Features multiple spindle configurations for versatile machining applications.
The Morbidelli CX110 is a precision CNC drilling and routing center engineered for high-volume production of flat-panel woodworking components. It functions as a dedicated machining solution for operations requiring simultaneous multi-spindle drilling, boring, and optional edge routing on panels ranging from 200–3050 mm in length and 50–950 mm in width, with material thickness capability from 8–60 mm. The machine offers two drilling head configurations: the F19L with 13 vertical and 6 horizontal spindles (4X + 2Y), and the F23L with 13 vertical and 10 horizontal spindles (6X + 4Y), both running at 4200 rpm standard with optional inverter-driven speeds up to 8000 rpm. Both heads feature integrated 125 mm saw blades for trim operations at 5000 rpm (up to 10,000 rpm with inverter). For routing applications, the CX110 accommodates either a 5.5–7.5 kW ER32 electrospindle (1500–18,000 rpm) or a more powerful 7.5–10.2 kW HSK63-F spindle (1500–24,000 rpm) with a 6-position automatic tool changer, enabling seamless profile routing, edge treatments, and finishing passes. Multi-axis speeds reach 50 m/min (X), 40 m/min (Y), and 30 m/min (Z), delivering rapid cycle times for batch production. The CX110 is purpose-built for medium to industrial-scale manufacturers processing cabinet components, furniture panels, melamine-faced boards, and composite wood materials. Its multi-spindle architecture eliminates sequential drilling operations and reduces setup time, making it ideal for contract manufacturers, OEM suppliers, and in-house production departments handling 50+ panels per shift. The standard 3D PROBE copying system enables template-based production and quality verification, critical for job-shop environments managing diverse customer specifications. Within its class, the CX110 represents a mid-range solution between basic single-spindle drilling centers and fully automated flexible manufacturing systems. The horizontal drilling capacity and integrated saw functionality reduce the need for secondary processing stations, while the modular spindle configuration allows customers to scale tool capabilities without machine replacement.
