Morbidelli CX210/CX220
CNC drilling centres designed for batch-1 production of wooden panels with high-precision multi-spindle drilling capabilities. Features integrated routing and dowel insertion for complete machining solutions.

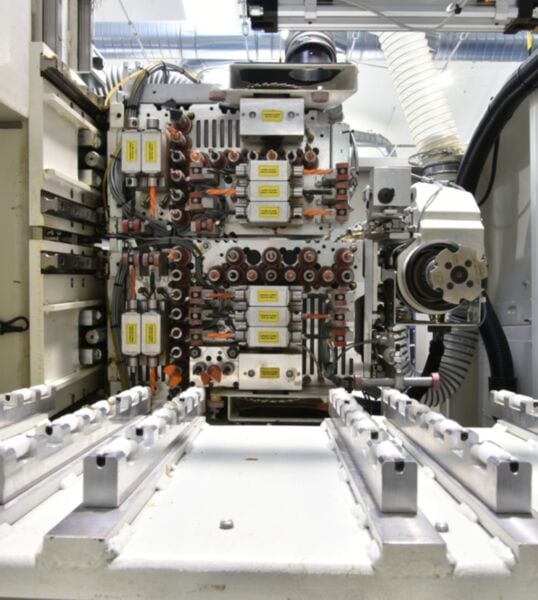

The Morbidelli CX210 and CX220 are precision CNC drilling centres purpose-built for high-volume batch production of wooden panels and components. These machines automate multi-axis drilling, routing, and dowel insertion in a single pass, eliminating the need for secondary operations on panels up to 3050mm in length and 1300mm width with thickness capacity to 95mm. Both models feature the F31LTC or F21L drilling unit architecture with vertically-mounted spindles (21 and 13 respectively) and coordinated horizontal spindle arrays (6×4 and 6×2 configurations) operating at 8000 rpm for precision boring and pocket drilling. The integrated routing spindle achieves 24000 rpm at 7.5 kW for edge profiling and mortising, while the dedicated saw blade unit at 5500 rpm handles crosscutting and Clamex joining preparation. Rapid X-Y-Z axis traverse speeds of 70/40/30 m/min ensure minimal cycle times between drilling stations. The CX210 targets medium to large-scale shops producing cabinet panels, kitchen components, and modular furniture requiring consistent multi-hole boring patterns with integrated glue-dowel assembly. The CX220 extends capability with additional horizontal spindles for more complex edge-milling profiles and is suited to industrial manufacturers processing 200+ panels daily. Both machines employ 6-position tool changers and water or vinyl glue dowel insertion systems for one-pass assembly-ready production. Within the CNC drilling centre class, these Morbidelli models compete on spindle density and integrated routing capacity rather than raw speed, prioritizing accuracy and component completeness over throughput velocity—ideal for batch sizes of 50–500 units with tight tolerance requirements.
