Morbidelli M100/200F

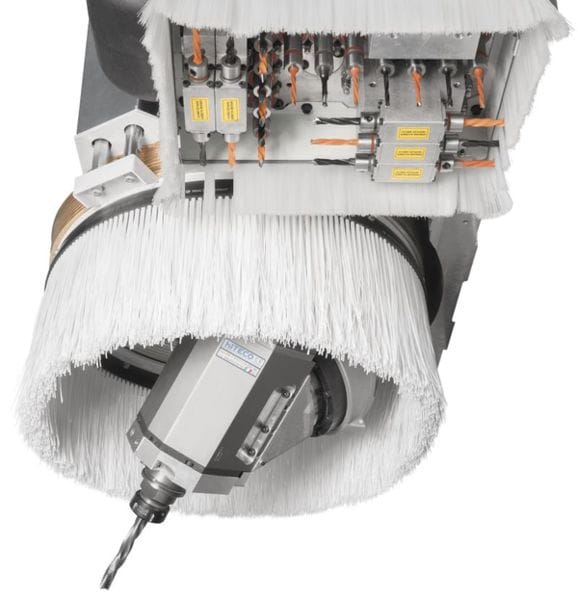

The Morbidelli M100/200F is a modular CNC machining centre engineered for high-precision woodworking and advanced materials processing across multiple production scales. It combines a primary 15 kW routing unit (capable of 24,000 rpm) with integrated drilling and blade capabilities, delivering a complete solution for complex machining operations in a single setup. The M100/200F distinguishes itself through its dual-spindle architecture and configurable working areas ranging from 3110×1320 mm to 5510×1620 mm. The routing unit is supported by up to 21 independent vertical and 12 independent horizontal drilling spindles, enabling simultaneous multi-operation processing. The M100 configuration offers 44-position tool storage with 180 mm Z-axis clearance, while the M200 extends to 60-position storage and 250 mm Z-axis passage—accommodating thicker panel stock and taller workpiece geometries. Vectorial feed rates reach 78 m/min in ProSpeed mode, significantly reducing cycle times on large-format materials. This machine class serves medium to industrial woodworking operations requiring simultaneous routing, drilling, and edge processing in single-clamp setups. It is ideal for shops producing cabinet components, architectural millwork, laminated panels, and engineered wood products where setup time reduction and precision consistency are critical cost drivers. The auxiliary 4.5 kW routing unit and integrated 0-90° blade unit (2.2 kW, 6,000 rpm) enable secondary finishing operations without unloading. The M100/200F competes in the mid-to-upper range of European CNC centres, offering higher spindle counts and Z-axis clearance than entry-level beam saws while maintaining faster throughput than dedicated single-spindle routers through parallel processing capability. Its modular tool ecosystem makes it suitable for both batch-production and job-shop environments with varied material specifications.
