oikos x4

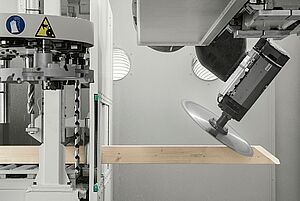

The oikos x4 is a 6-axis CNC machining centre purpose-built for high-precision processing of structural timber elements in modern timber construction workflows. It delivers dual-material capability, handling both camber beams (curved members up to 675×300 mm) and straight beams (up to 1,250×300 mm cross-section) on a single platform, eliminating the need for separate equipment and reducing production bottlenecks in mid-to-large scale operations. The machine's technical architecture supports three configurable working lengths (13,500, 16,000, or 19,000 mm) to match facility constraints and project requirements, with automatic loading capacity up to 2,500 kg for continuous workflow efficiency. The 6-axis configuration enables complex three-dimensional cuts, angled joints, and compound geometries essential for glulam connections, CLT fabrication, and engineered timber components. A 500 mm saw blade paired with selectable routing spindle power (13 or 25 kW S1 rated) provides flexibility for both profile routing and structural cutting operations across the full workpiece spectrum. The oikos x4 is engineered for timber construction enterprises, prefabrication facilities, and mid-to-large carpentry operations processing 50–1,500+ components per week. It occupies the intersection of precision and throughput—handling the dimensional accuracy and edge quality required for CLT panels, roof trusses, and structural joints while maintaining production speeds compatible with semi-automated supply chains. With an 18-position tool changer, the machine minimizes setup transitions and reduces non-cutting time in high-mix, moderate-volume production environments.
