PRISMA 1 Danibrum Sliding Table Saw with Scorer

The DANIBRUM PRISMA 1 is a precision sliding table saw designed for industrial-grade crosscutting and ripping of panels, composite materials, and solid wood. The machine combines a 3200mm movable table with a synchronized scorer unit, enabling clean edge cuts and reduced tear-out on both sides of the workpiece simultaneously.

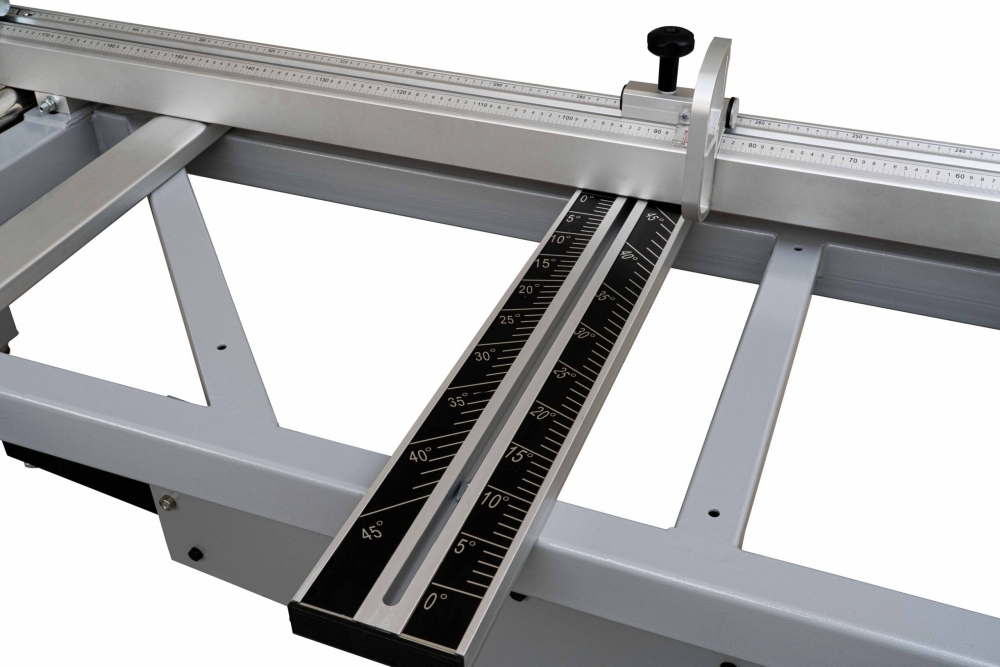

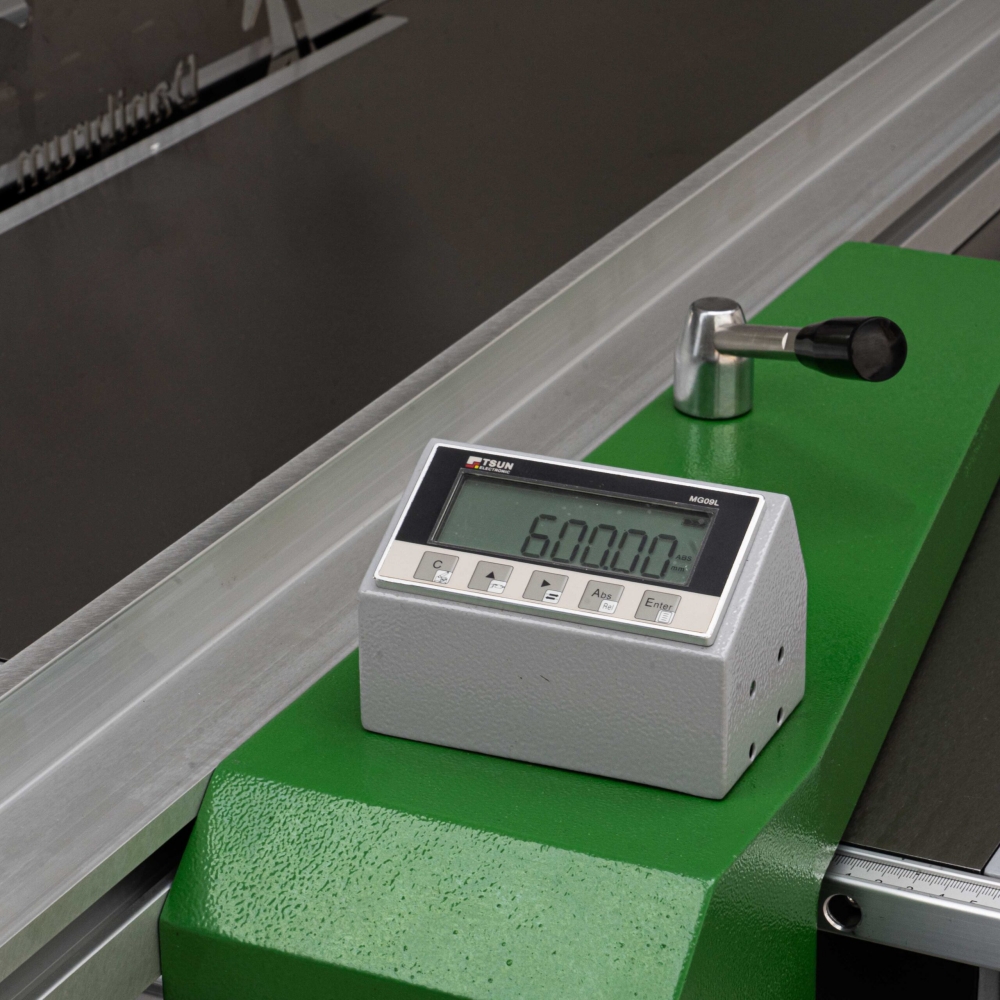

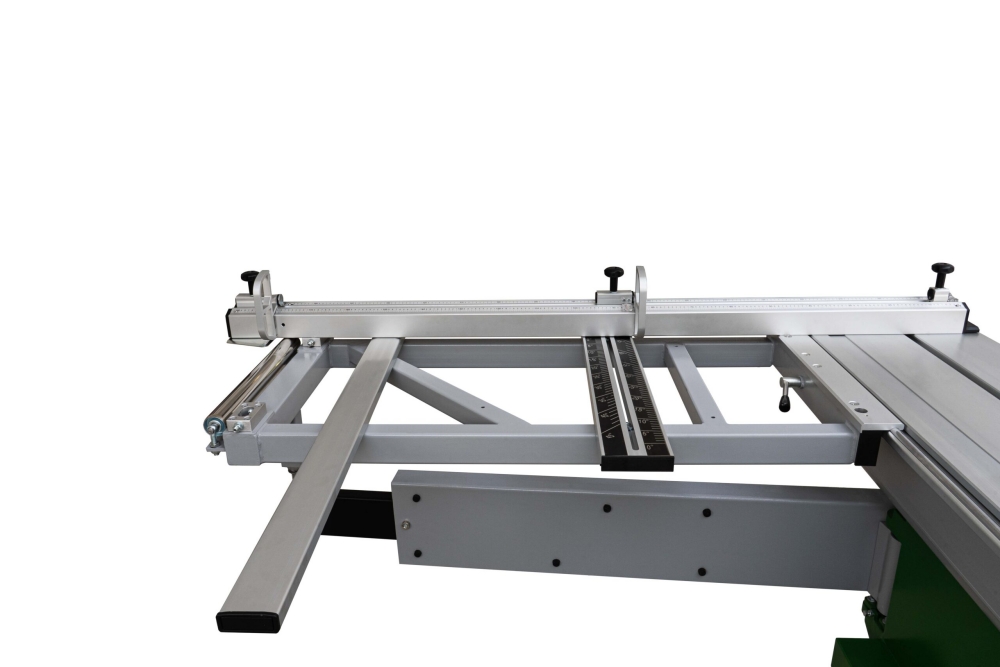

Key technical capabilities include dual blade speeds (4500–5000 rpm on the main blade, 8200 rpm scorer), independent height and lateral adjustment of the scorer unit, and electrically-controlled main blade positioning for repeatable cuts up to 210mm at 90° and 120mm at 45° angles. The machine accommodates blade diameters from 280–600mm, allowing flexibility in cutting depth and finish quality. Motor options range from 5.5kW to 7.5kW, with a dedicated 1.1kW scorer motor ensuring consistent chip removal and edge quality. The 1300mm right-side cutting width and extended cross ruler (1970mm standard, expandable to 3400mm) support processing of wide panels and custom widths without repositioning.

This sliding table saw is configured for medium to industrial woodworking facilities processing engineered panels (MDF, PAL), veneer-faced panels, and solid timber components where edge quality and dimensional precision are critical. The scorer mechanism is essential for operations requiring tear-out prevention on high-visibility edges. Standard 100mm dust extraction port suits centralized workshop systems.

Compared to single-blade sliding saws, the PRISMA 1's integrated scorer eliminates secondary operations and reduces material waste, making it cost-effective for batch production runs exceeding 500+ pieces per material type. Optional table extensions (3670–3800mm) and variable motor power allow operators to scale the machine for both standard panel formats and custom applications.
